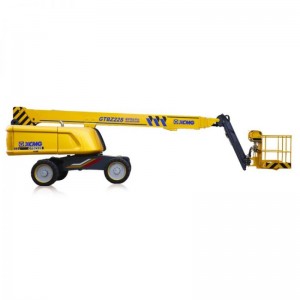

22m Telescopic Aerial Work Platform GTBZ22S
It is the highest-efficiency straight boom aerial work platform applied at the elevation of 22 meters. Being four-wheeldriven, it has the top-ranking gradeability among the industry; provided with the double-operating-radius curve, the machine has the industry-leading operating altitude/radius and carrying capacity. This type of machine, not only simple and high-efficiency, but also safe and reliable, may satisfy the diversified demands of different industrial users engaged in building construction, bridge and equipment maintenance, shipbuilding, petrochemical engineering, lease etc.
（1）Highest Efficiency in Operation
Being the highest-efficiency product applied at the elevation of 22 meters, it may be quickly lifted from the ground to the maximum altitude of operation just within 68 seconds.
（2）Outstanding Performance of Operation
With the maximum carrying capacity of 340kg, it has the industry-leading altitude and radius of operation, and may satisfy relevant construction demands on heavy loads and large operating spaces.
（3）Excellent Off-Road Performance
The four wide tyres, the real-time drive and the novel axle balancing system that may automatically make a response to the terrain will strengthen together the stability in driving on rough roads.
|
Itmm |
Parameter |
|
Overall Length(mm) |
10150 |
|
Overall Width(mm) |
2490 |
|
Overall Height(mm) |
2800 |
|
Wheel Base(mm) |
2500 |
|
Maximum Working Height(m) |
23.7 |
|
Maximum Platform Height(m) |
22 |
|
Maximum Working Range(m) |
18.3 |
|
Maximum Load Capacity（kg） |
340 |
|
Boom Luffing Range(°) |
-5～+75 |
|
Crank Arm Luffing Range(°) |
|
|
Rotation Angle of Rotating Platform(°) |
360 |
|
Maximum Tail Wagging(mm) |
1550 |
|
Platform Size(mm) |
2400*900 |
|
Rotation Angle of Platform(°) |
180 |
|
Total Weight(kg) |
12500 |
|
Maximum Travel Speed(km/h) |
6 |
|
Minimum Turning Radius(m) |
6 |
|
Minimum Ground Clearance(mm) |
230 |
|
Maximum Grade Ability(%) |
45 |
|
Tire Specification |
355/55D625 |
|
Engine Model |
Perkins404D-22T |
|
Rated Power of Engine(kW/(r/min)) |
43/(2600) |
