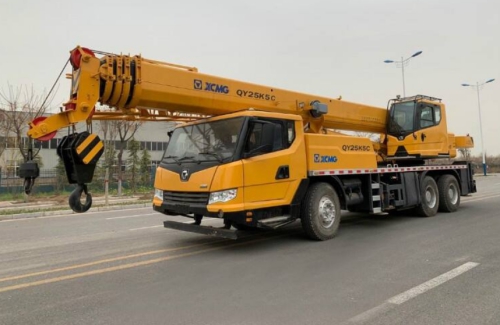

XCMG 25 ton truck crane with 5 section booms QY25K5C

Short Description:

Main parameters:

Max. rated total lifting capacity: 25T

Five section booms and one lattice jib

Fully extended boom: 41M
Fully extended boom+jib: 48M
Engine model: SC9DF290Q4
Main configuration:
Piot control system
Hirschmann PAT
Air condition
Deluxe full dimension cab


  • Brand: XCMG
  • Product origin: China
  • Delivery time: 1-30 days
  • Warranty: provide
  • Product Detail

    Product Tags

    XCMG 25 ton truck crane
    Model: QY25K5C

    Main specifications:



    The operations of XCMG manufacturer 25 ton small mobile truck crane QY25K5C are very simple, convenient and flexible.



    XCMG 25 ton small mobile truck crane QY25K5C is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.



    1. U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation,strong anti-bending and powerful lifting capacity.The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully-extended are also superior.

    2. Plug-in boom head effectively increases theboom connect length andreducesboom deformation.Embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.

    3. With 9-speed transmission equipped, it has superior travel and grade ability. The max. grade abilityis 40%, max. travel speed is 90km/h.

    4.Open type fixed displacement pump and variabledisplacement motor system is adopted.Double pump confluenceis used in main operation, which meets the requirements of speed and reduces the energy consumption and system heat effectively. The load sensitive system that researched anddeveloped by ourselves contributes to smooth operation, high efficiency and energy saving.Particularslewing technology realizes smooth slewing and no jitter. Free fall is adopted in the elevating system,which effectively realizes energy-saving.The counterbalance valve adopts over-load compensated technology to ensure crane fallsmoothly.





    Category

    Item



    Unit

    Parameter

    Dimension Parameter

    Overall length



    mm

    12680



    Overall width



    mm

    2500



    Overall height



    mm

    3400



    Wheel base



    mm

    4425+1350



    Wheel track



    mm

    2074/1834/1834

    Weight Parameter

    Total mass under driving status



    kg

    32800



    Axle load

    Front axle

    kg

    7300





    Back axle

    kg

    25500

    Kinetic Parameter

    Engine type





    SC9DF290Q4



    Engine power rating



    kw/(r/min)

    213/2200



    Rated torque of engine



    N.m/(r/min)

    1200/1400

    Running Parameter

    Maximum travel speed



    km/h

    90



    Minimum diameter of turning circle



    m

    22



    Minimum ground clearance



    mm

    275



    Approach angle



    °

    11



    Departure angle



    °

    12



    Braking length (the speed is 30km/h)



    m

    ≤10



    Maximum gradeability



    %

    41



    Fuel consumption per hundred kilometers



    L

    ≤32

    Noise Parameter

    Car exterior noise when speeding up



    dB(A)

    88



    Noise around the driver’s ear



    dB(A)

    90
